Industry and product
Industrial system

Hydraulic winch

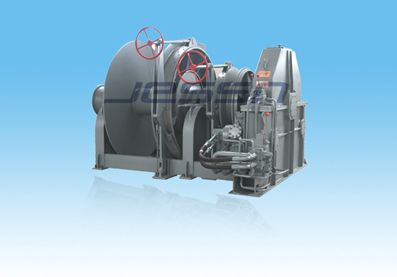

Product name： Hydraulic winch
Product model：

Specifications:

Product code

DJ0010050

 DJ0010063 DJ0010072 OJ0010423

DJ0010064

DJ0010066

Model

YJG-40/80

 YJG-60/60 YJG-60/80 YJG-80/110

YJG-150/70

YJG-300/60

Rated rally

 40kN - 6T (The tenth floor：Half rope length600m) - 15T(The middle layer)  30T (The middle layer)

Average line speed

 80m/min - - -  -  -

Rated pull

 - 60KN -

8t（Main）

9.32t（Vice）

  -  -

Rated speed

 - 60m/min 80m/min(The tenth floor：Half rope length600m) -  70m/min（The middle layer）  60m/min(The middle layer)

Cable dia

 - ∅22mm -

Φ22mm×200 （Main）Φ40mm×200（Main）

Φ28mm×30（Vice）

  -  -

Working pressure

 - 162.2bar 169.5bar -  156bar  183bar

Working flow

 - 320L/min 429.2L/min -  1000L/min  1383L/min

Wire dia

 - - 24mm-45mm -  24mm  32mm

Wire length

 - - 1200m+150m -  1500m  2500m（Admissible 3000m）（Main）、100m（Vice）

Stop capacity

 - - - 12t（Main）15t（Vice）  -  -

Motor power

 - - -   3x110kw -



Other explanation:

Hydraulic winch introduction PDF reader：Download

Downloading prompts：

1、The material of production is PDF format text；

2、If it is not opened after downloading, please install PDF reader；

3、As downloading, recommend to use the downloading tools or save file as file.

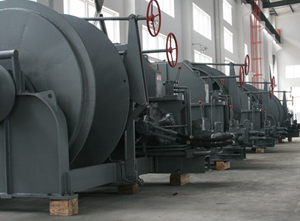

Workroom production
Winch back drawing Winch left drawing

Examples of application:

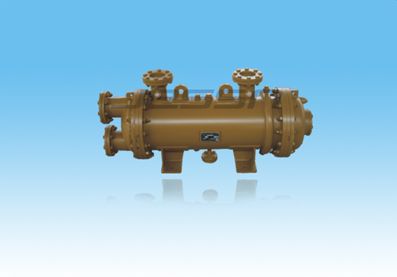

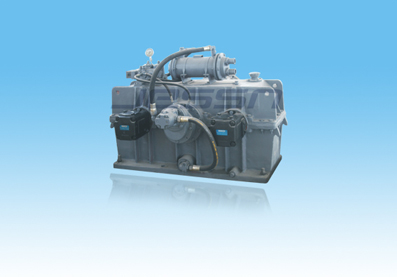

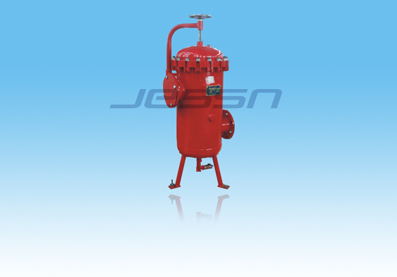

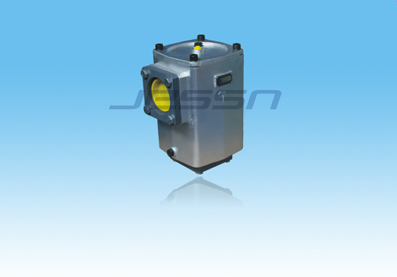

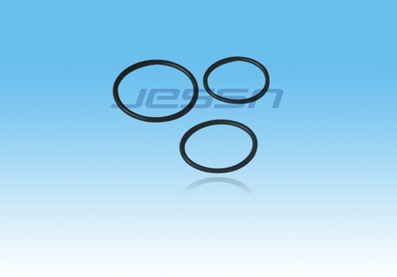

Accessories:
